How to distinguish ev charger type 2 from other types?

EV Charger Type 2: Design, Specifications, and Technical Advantages

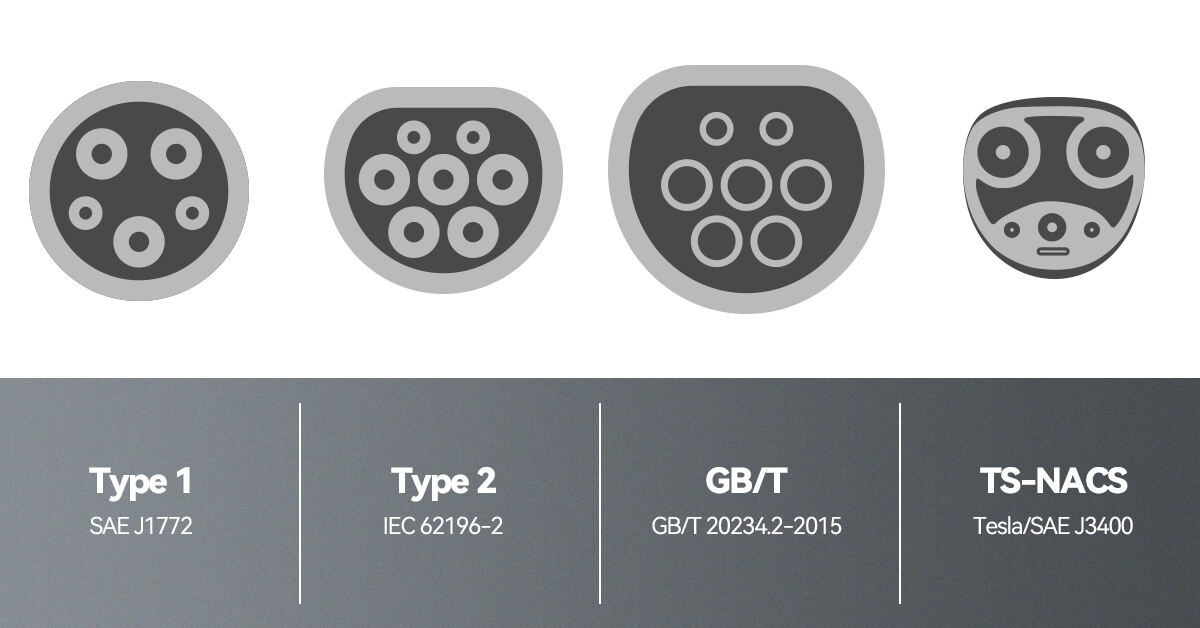

Physical characteristics of the EV charger type 2 connector

The Type 2 EV charger connector, often called the Mennekes connector, has a round shape with a thermoplastic housing measuring around 55mm across. Safety grooves are built right into the design. What makes this connector stand out is its sturdy build with those spring-loaded clamps that automatically lock when plugged in, so the connection stays secure while charging happens. Compared to the boxy Type 1 connector, Type 2's balanced design lets it rotate fully 180 degrees. This rotation feature really helps when trying to plug in tight spots where space is limited, something drivers deal with all the time in urban areas.

Pin configuration: Understanding the 7-pin design vs. other standards

Type 2’s seven-pin layout enables greater functionality than Type 1’s five-pin system:

Pin Type	Function	Type 1 Equivalent
3x Phase	Three-phase AC power delivery	Not present
Neutral	Return path for single-phase AC	Shared ground
CP/PP	Communication & proximity detection	Same purpose
Earth	Safety grounding	Present in both

This configuration supports up to 32A at 400V, delivering 22 kW in three-phase mode—nearly triple the 7.4 kW maximum of Type 1.

IEC 62196-2 standard and its role in defining type 2 chargers

The IEC 62196-2 standard governs Type 2 connectors, specifying interoperability requirements such as temperature monitoring via PIN 4 and PWM signaling for charge-rate negotiation. Compliance ensures seamless cross-brand operation, contributing to Type 2’s dominance across Europe, where it serves 76% of public AC charging stations (EU Alternative Fuels Observatory 2023).

Single-phase vs. three-phase power delivery in type 2 connectors

Type 2 connectors support both single-phase and three-phase power by utilizing different pin combinations:

• Single-phase (230V): Uses L1, Neutral, and Earth pins for 7.4 kW output, ideal for home charging
• Three-phase (400V): Engages all three phase lines (L1–L3) to deliver up to 22 kW, suited for commercial applications

For example, a Mercedes EQC with a 40kWh battery charges in about 5.5 hours on three-phase versus 9 hours on single-phase. Built-in thermal sensors deactivate the circuit if temperatures exceed 85°C, enhancing safety during prolonged high-load sessions.

Regional Adoption and Infrastructure: Where Is EV Charger Type 2 the Standard?

Why the EV charger type 2 dominates in Europe

Back in 2014, the European Union put its foot down and required all member states to adopt the Type 2 connector according to the IEC 62196-2 standard. This move basically brought everyone's charging infrastructure into line with a common AC charging system across borders. What makes this connector special is how it works with three-phase electricity, which taps into Europe's existing power grid strengths. The result? Faster charging speeds reaching up to 22 kW for AC charging, making it roughly 40 percent quicker compared to those old single-phase options still hanging around. Looking ahead, most public AC charging stations throughout Europe should have these Type 2 ports installed by 2025. Major car makers such as BMW and Renault have already jumped on board with this standard, something confirmed in recent reports from the 2024 electro mobility research findings.

Limited adoption in North America and emerging use in Asia

North America still sticks mostly with Type 1 (J1772) and CCS Combo 1 connectors, which leaves Type 2 chargers at under 5% of all public stations across the continent. Things look different down in Southeast Asia though. Countries like Thailand and Malaysia have started rolling out Type 2 connections because so many Europeans bring their electric cars there. The region is throwing serious money behind expanding EV charging networks too. Exactitude Consultancy predicts around $740 million will be spent on infrastructure by 2026, which makes sense given how fast things are changing. This investment should definitely speed up the switch from older connector types in these markets.

Major public charging networks using type 2 connectors

Most major charging networks across Europe have gone with Type 2 connectors because they just last longer and save money in the long run. These connectors handle around 9 out of 10 AC charging spots throughout the continent. What's interesting is how reliable they are too. The systems stay online about 98% of the time, way better than the old CHAdeMO setup that only managed around 82% reliability back in the day. Charging station operators usually combine regular Type 2 AC ports with those faster CCS Combo 2 DC chargers. This works great for cars such as the Hyundai Kona Electric and the all-electric Volvo XC40 Recharge since both can charge using either system depending on what's available at any given moment.

Comparing EV Charger Type 2 with Type 1: Compatibility, Performance, and Use Cases

Connector Differences: Type 2 (Mennekes) vs. Type 1 (SAE J1772)

Type 2 connectors, also known as Mennekes, feature a 7 pin setup that can handle three phase power delivery. On the other hand, Type 1 connectors following the SAE J1772 standard only have five pins and work with single phase AC electricity. Because of this difference in design, Type 2 models are able to push out around 22 kilowatts of power, whereas Type 1 maxes out at about 7.4 kW. That makes Type 2 much more appropriate for situations where there's significant power demand like in larger homes or business locations needing fast charging solutions. Another thing worth noting about Type 2 connectors is their distinctive shape. They have rounded corners but with flat sides along certain areas, which actually helps stop people from plugging them into the wrong kinds of outlets by accident.

Charging Speed and Power Limits: AC Level 1/2 Comparison

When it comes to AC Level 2 charging, Type 2 connectors really stand out. They deliver between 3 and 22 kilowatts of power, while Type 1 only manages 3 to 7 kW. For electric vehicle owners like those with a Nissan Leaf, this makes a big difference. A full charge takes around 4 to 6 hours with Type 2 connections, but can stretch out to 7 or even 12 hours when using Type 1 equipment. The three phase capability of Type 2 systems also works wonders for managing electrical grids better. During busy times when lots of vehicles are charging at once, these systems spread the load across multiple phases, which means less stress on the local power network. Fleet managers especially appreciate this feature since it helps them avoid costly infrastructure upgrades and keeps their operations running smoothly without unexpected power issues.

Vehicle Compatibility: Nissan Leaf, Volkswagen ID Series, and Tesla (With Adapter)

Cars made in Europe like the Volkswagen ID series usually have built-in Type 2 charging ports right from the factory. Most electric vehicles coming out of North America and Asia need some kind of adapter to work properly. The situation is a bit different for Teslas sold outside Europe which still use their own special connectors. However, Tesla owners can get an official adapter that lets them plug into Type 2 stations. This means they can charge at most public stations found in countries where the Type 2 standard has been widely accepted. The availability of these adapters makes it much easier for drivers to travel between regions without getting stuck with no place to charge.

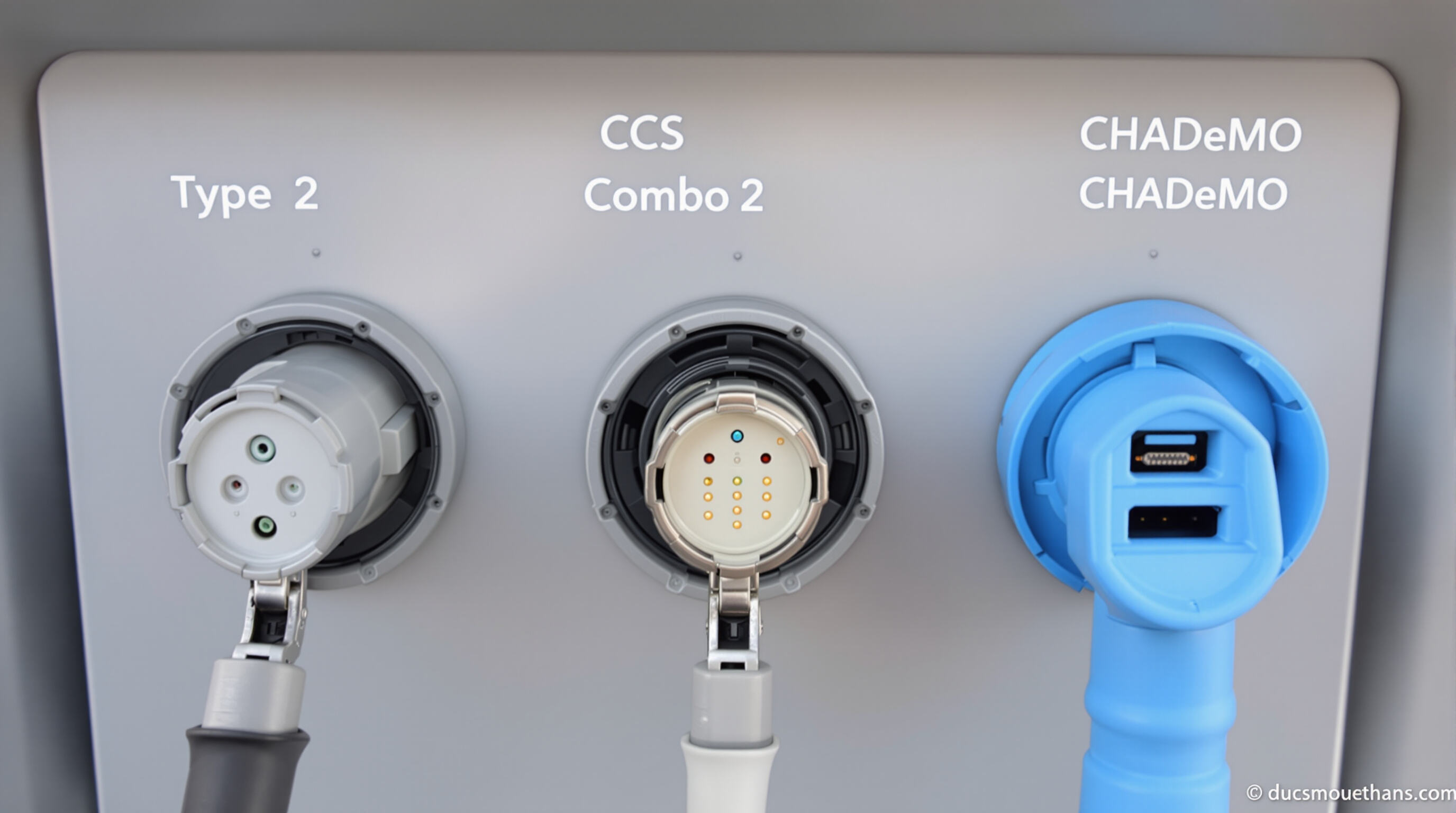

Type 2 vs. DC Fast Charging Standards: Understanding CCS Combo 2 and CHAdeMO

How EV Charger Type 2 Forms the AC Base for CCS Combo 2

At the heart of CCS Combo 2 sits the Type 2 connector, which incorporates two additional DC fast charging pins positioned beneath the standard 7 pin AC setup we already know. According to specifications laid out in IEC 62196-3, this clever hybrid approach means cars can charge using either AC or DC power through the same physical port. What makes this design particularly smart is that it works seamlessly with all the existing Type 2 charging stations around Europe while still enabling much faster DC charging capabilities reaching speeds of up to 350 kilowatts when connected to compatible equipment.

Charging Speed Comparison: 22 kW AC (Type 2) vs. 50–350 kW DC (CCS/CHAdeMO)

While Type 2 delivers up to 22 kW via AC, CCS Combo 2 and CHAdeMO enable rapid DC charging:

• CCS Combo 2: 50–350 kW (typical public station range)
• CHAdeMO: 50–400 kW (updated 2023 specifications)

DC standards bypass the vehicle’s onboard converter, drastically reducing charge times—ideal for long-distance travel. However, AC charging remains essential for overnight and workplace charging due to lower infrastructure costs and reduced grid impact.

Connector Durability and Thermal Performance During Extended Use

Type 2 connectors can handle around 10,000 mating cycles because they're built with materials that resist corrosion plus those handy spring-loaded contacts. The CCS Combo 2 takes things further when it comes to managing heat. It actually has temperature sensors built right into the DC pins. When the system detects high loads above 150 kW, it will throttle back power automatically to prevent overheating. Now CHAdeMO is quite a bit bigger than the others, but this bulk works to its advantage. The extra space allows for better insulation which keeps things running smoothly even at impressive 400 kW levels. That makes CHAdeMO a solid choice for commercial vehicle operators who need their trucks charged up quickly and repeatedly throughout the day.

How to Identify EV Charger Type 2 in Public and Private Charging Stations

Recognizing the Type 2 connector ensures compatibility with most European EVs and the majority of AC charging networks. It dominates across Europe and is expanding in parts of Asia, identifiable through visual, digital, and contextual cues.

Visual Identification: Shape, Color Coding, and Socket Labeling

Type 2 connectors stand out because of their unique round shape with a flat bottom, and most have blue casings that signal they're meant for AC charging. When checking sockets, watch for markings like IEC 62196-2 or Mennekes printed nearby. What really identifies them as Type 2 units are the seven distinct pins that stick out from the connector face. For those who need both AC and DC charging at combo stations, the CCS Combo 2 version includes two bigger DC pins hidden underneath the standard connector body, allowing for faster charging when needed.

Using EV Charging Apps and RFID Networks to Confirm Charger Type

PlugShare and similar apps let people look up charging spots based on what kind of connector they need, plus show current pictures and specs right there on screen. Most RFID cards given out by charging networks actually list which standards work before anyone starts plugging in. When dealing with private charging points, it's best to grab the manual from the manufacturer or take a peek at those metal plates stuck on equipment. These plates usually have some sort of marking that shows whether the unit meets Type 2 requirements or not. A quick glance at these indicators can save a lot of frustration when trying to charge up.

Common Confusions: Type 2 vs. Tesla’s Proprietary Connector

Tesla vehicles sold in Europe use native Type 2 inlets, but those in North America use a thinner proprietary connector. Key differences include:

• Tesla plugs lack manual locking levers (Type 2 has a latch)
• No secondary DC pins below the socket (unlike CCS Combo 2)
• White housing (vs. Type 2’s blue)

Industry charging standards clarify these distinctions, noting that Tesla’s NACS design requires an adapter for Type 2 compatibility outside Europe.
